Key Feature
- Guard Rail Analog Limiter
- 1.3″ OLED display
- +48V Phantom Power
- ~10hrs of battery life at 100mW
- Multiple RF Outputs (10mW, 25mW, 50mW, 100mW, AUTO)
- 75Hz and 150Hz Low cut filters
- Record 24bit/48kHz WAV files to microSD card

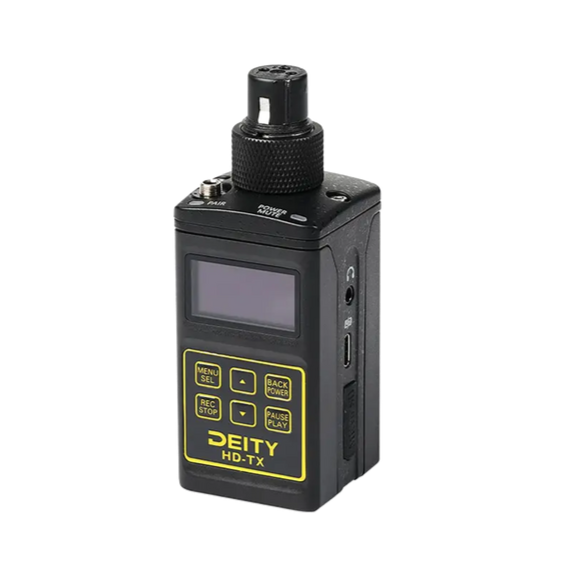

The Deity Microphones HD-TX is a plug-on transmitter with a built-in recorder that allows you to record a wired microphone or wirelessly transmit it while monitoring the signal in real-time. Featuring an XLR mic input with phantom power and a locking 3.5mm mic/line input with plug-in power, the HD-TX can accommodate a variety of sources.
As a transmitter, it provides secure 2.4 GHz encrypted signal compatible with Deity Connect wireless systems. With selectable RF output power and advanced frequency hopping, the HD-TX is capable of reliable transmission in indoor or outdoor environments.
Instead of transmitting to a receiver, the HD-TX can record 24-bit / 48 kHz WAV files to a separately available microSD card. The 3.5mm headphone port lets you listen to the playback of recorded files for easy quality checks.
As a transmitter or recorder, the HD-TX offers hours of operating time via its internal USB-rechargeable lithium battery. Plus, its analog limiter, selectable low-cut filter, and adjustable high-frequency boost ensure clear, intelligible audio quality.
SPECIFICATIONS
| Wireless Transmission | Digital 2.4 GHz |
| Encryption | Yes |
| Sample Rate | 48kHz / 24-Bit |
| Form Factor | Plug-On |
| RF Output Power | 10 / 25 / 50 / 100 mW (switchable) |
| Audio I/O | 1 x XLR 3-Pin Female Balanced Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Mic/Line Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Headphone Output |
| Phantom Power | +48 V – XLR Input |
| Plug-In Power | 3 V – 3.5mm Input |
| Pad | Up to -12dB |
| Muting | Mute Switch |
| Gain Range | -12 to +36 dB |
| Signal Processing | High-Pass Filter: Off, 20 – 200 Hz High Frequency Boost: Off, +1 – +10dB @ 7 Khz |
| Frequency Response | 20Hz to 20kHz |
| Antenna | 1 x 1/4 Wave Internal, Fixed |
| Power Requirements | Battery or Bus Power (USB) |
| Battery Type | 1 x Built-In Rechargeable (included) |
| Internal Battery Capacity | 2600mAh |
| Battery Charging Time | 90 Minutes |
| Approx. Battery Life | ~12 Hours @ 100 mW RF Output +14 Hours @ 10 mW RF Output |
| USB Connectivity | 1 x USB Type-C (Data Transfer, Charging, USB Sound Card) |
| Display & Indicators | 1 x LED (Mute, Power) 1 x LED (Pair) 1 x OLED |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Dimensions | 1.7 x 4.4 x 1.7″ / 42.5 x 112.3 x 42.5 mm |
| Weight | 7.8 oz / 220 g |
